    ANSI B94 HSS (M2) fully ground Jobber length Drill Bits 135° Split Point with Coating TiN

    Ask Lasest Price
    Brand Name : M&G
    Price : Negotiation
    Payment Terms : T/T, PayPal, Visa
    Supply Ability : We have enough of machine tools and worker power for any quantity order in industrial tools
    Delivery Time : 6-30 days after order confirmation
    Model Number : ANSI
    • Product Details
    • Company Profile

    ANSI B94 HSS (M2) fully ground Jobber length Drill Bits 135° Split Point with Coating TiN

    ANSI B94 Jobber Drill Bits HSS-TiN High Speed Steel 135° Split Point for quick penetration

    TiN coating is a very hard, gold coloured surface coating a few microns thick which is applied by means of a complex process, called Physical Vapour Deposition (PVD), by advanced modern equipment.
    The coating is non-metallic and therefore reduces cold welding. In certain applications increased speed and feed rates can be achieved because of:
    (a) The hardness of the coating.
    (b) The reduction in cutting force required due to a decrease in friction between the tool and the workpiece.
    Tool performance will deteriorate after re-sharpening.


    Descriptions:

    Product name:ANSI B94 HSS-TiN Jobber Length Drills 135° Split Point for quick penetration
    Material:M35, M2, 4341
    Process:Fully Ground, Milled, Roll forged
    Standard:ANSI B94
    Type:Jobber Length, Aircraft Extension, Extra Length, Screw Machine Length, Taper Length, Left Hand
    Size:Metric size, Fractional Size, Wire Gauge Size, Letter Size
    Point Type:118° Split Point: Standard web construction which allows easier penetration
     135° Split Point: Heavy web construction and may be used with heavier feeds in harder materials.
     It’s popular in hand held drilling applications to reduce breakage and eliminate skidding or walking.
    Shank Type:Straight Shank, Hex Shank, Reduced Shank, Tri-Flats Shank, Quick Release Shank
    Flute Type:Regular Flute, Fast Spiral, Slow Spiral, Parabolic Flute
    Surface Finish:Black Oxide: Creates a porous layer that holds cutting oil which provides abrasion resistance and improved chip flow.
     Bright Finish:Better chip ejection in low carbon, non-ferrous materials.
     Titanium Nitride Coated: For added wear resistance and better lubricity of tool surface which increases tool life and productivity.
     Black & Gold
    Package:PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell,Metal Box

    Features:

    1. High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance.
    2. Universal 135° Split point shape for drilling a wide selection of materials.
    3. Precision ground point, flutes, body, clearance and drill diameter for the ultimate in accuracy and performance.
    4. Ground flutes provide fast chip removal to maximize accuracy and efficiency along the full working surface of the bit.
    5. Special multi-cut geometry with ply-cutting and lower friction to reach better performance of endurance and removal of chips. So its life is lengthened. It is stable made and can cut with high speed, and make the surface of materials smooth. It has exact diameter and can use after regrinding.


    Pictures:

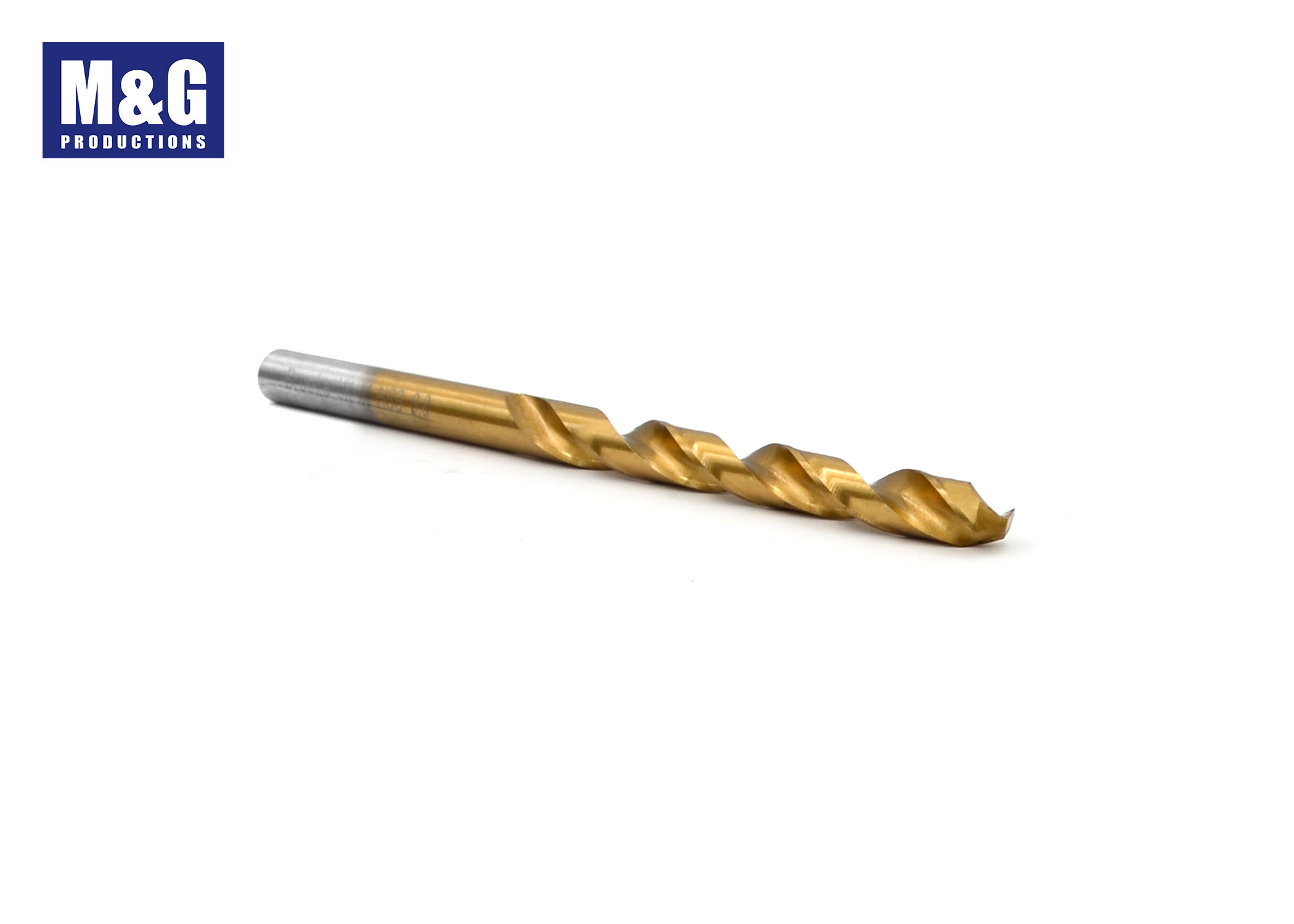

    Quality ANSI B94 HSS (M2) fully ground Jobber length Drill Bits 135° Split Point with Coating TiN for sale
