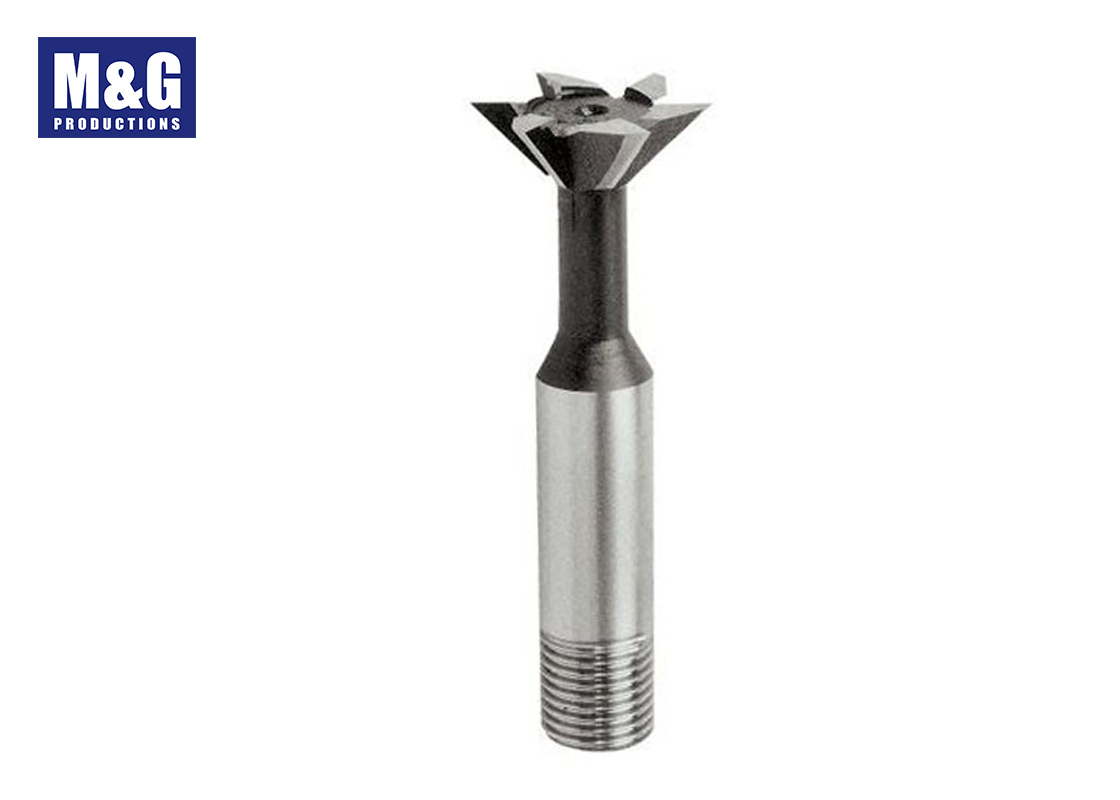

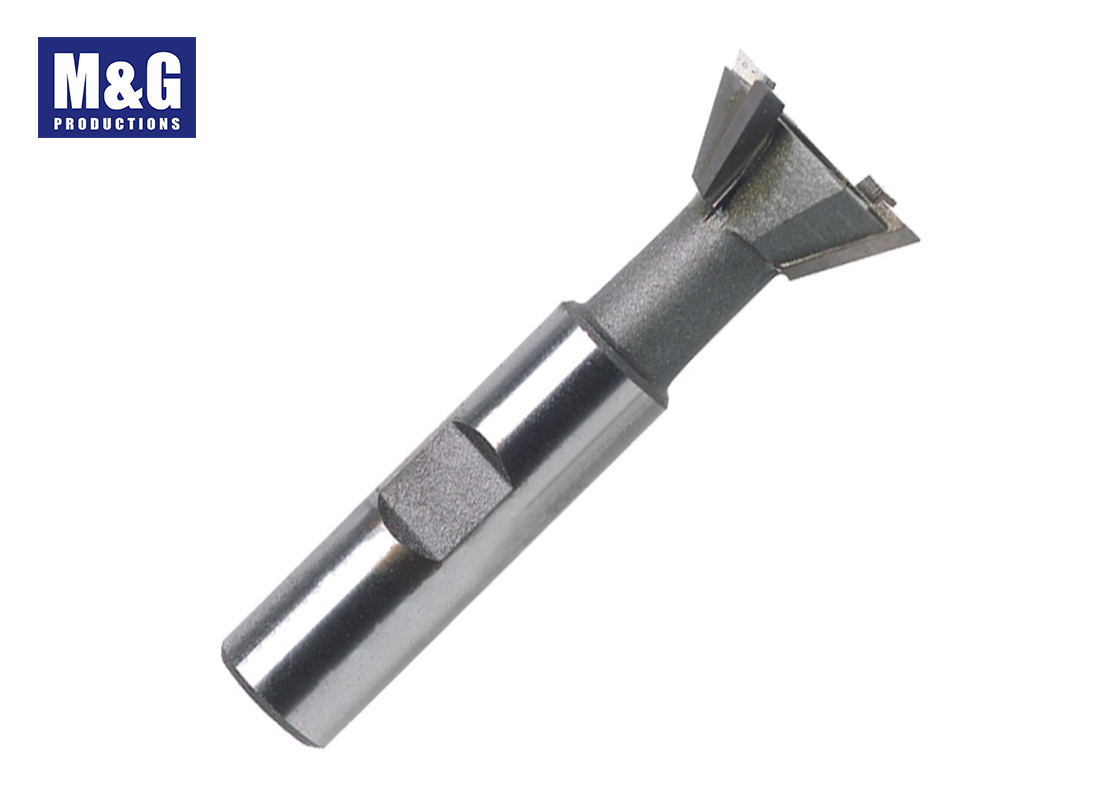

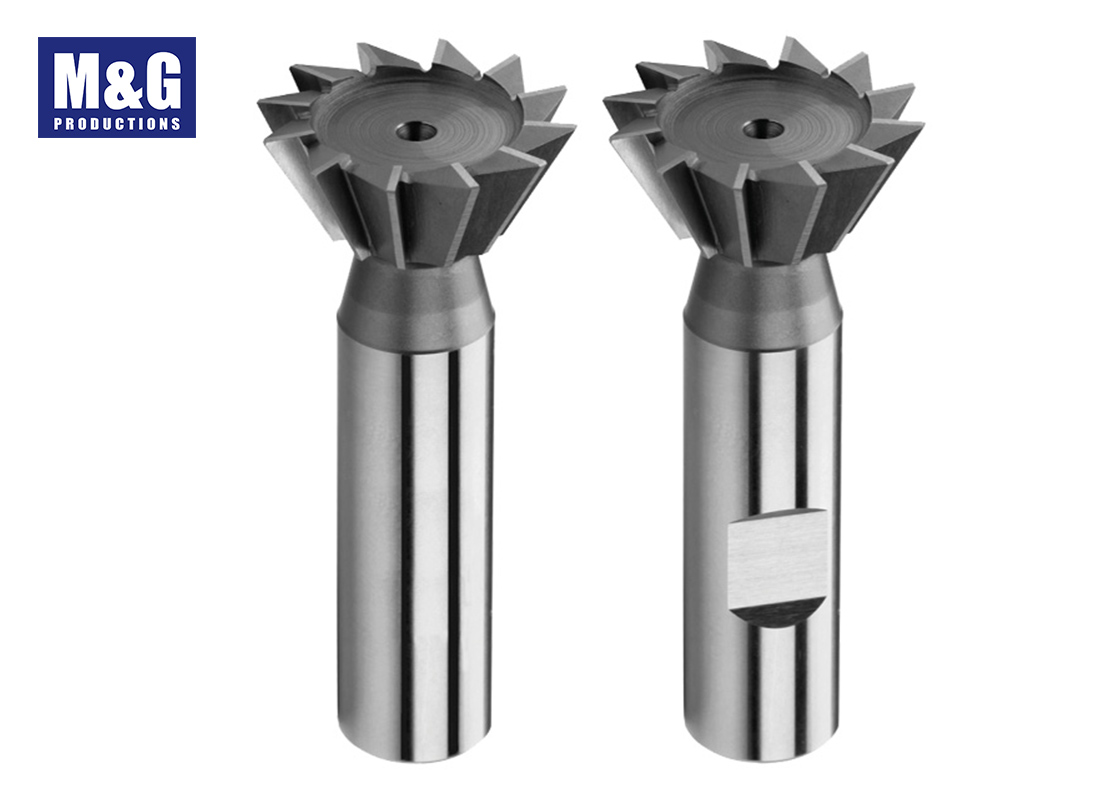

Dovetail Angular Cutter Screwed Shank

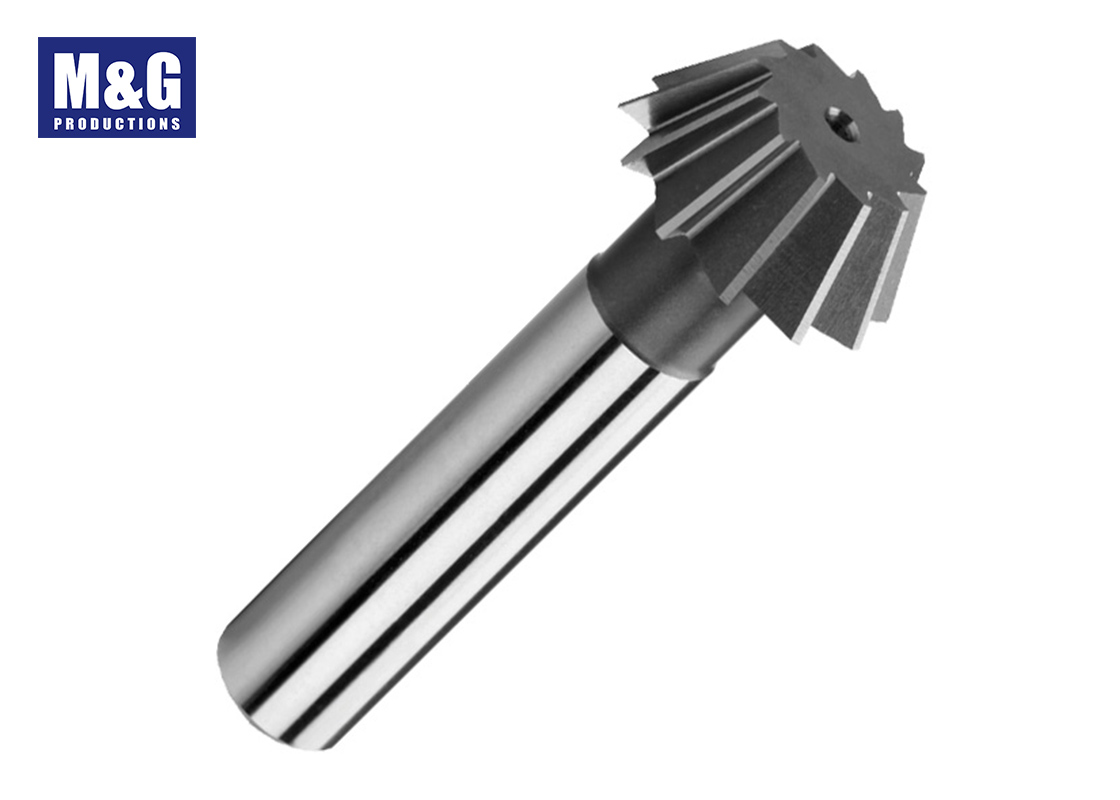

Inverted Dovetail Angular Cutter Screwed Shank
For dovetail and angle cutting.
Right hand, 45° or 60°
Dovetail Angular Cutter Screwed Shank, 45°
| Size | Cutter Width | Shank Dia. | OAL | ANGLE |
| 1/2" | 1/8" | 1/2" | 2-5/8" | 45° |
| 5/8" | 5/32" | 1/2" | 2-5/8" | 45° |
| 3/4" | 7/32" | 1/2" | 2-5/8" | 45° |
| 7/8" | 1/4" | 1/2" | 2-11/16" | 45° |
| 1" | 5/16" | 1/2" | 2-3/4" | 45° |
| 1-1/8" | 11/32" | 5/8" | 2-15/16" | 45° |
| 1-1/4" | 11/32" | 5/8" | 2-15/16" | 45° |
| 1-3/8" | 3/8" | 1" | 3-1/16" | 45° |
| 1-1/2" | 13/32" | 1" | 3-3/32" | 45° |
| 1" * | 15/32" | 1/2" | 2-3/4" | 55° |
| 13mm | 3mm | 12mm | 63.5mm | 45° |
| 16mm | 4mm | 12mm | 66.5mm | 45° |
| 19mm | 5.5mm | 12mm | 66.5mm | 45° |
| 22mm | 6.5mm | 12mm | 68.5mm | 45° |
| 25mm | 7.5mm | 12mm | 70.0mm | 45° |
| 28mm | 8.5mm | 16mm | 71.5mm | 45° |
| 32mm | 8.5mm | 16mm | 74.5mm | 45° |
| 35mm | 9.5mm | 25mm | 79.5mm | 45° |
| 38mm | 10.5mm | 25mm | 80.0mm | 45° |
Dovetail Angular Cutter Screwed Shank, 60°
| Size | Cutter Width | Shank Dia. | OAL | ANGLE |
| 1/2" | 5/32" | 1/2" | 2-1/2" | 60° |
| 5/8" | 7/32" | 1/2" | 2-5/8" | 60° |
| 3/4" | 9/32" | 1/2" | 2-21/32" | 60° |
| 7/8" | 3/8" | 1/2" | 2-21/32" | 60° |
| 1" | 15/32" | 1/2" | 2-3/4" | 60° |
| 1-1/8" | 1/2" | 5/8" | 2-7/8" | 60° |
| 1-1/4" | 17/32" | 5/8" | 2-15/16" | 60° |
| 1-3/8" | 9/16" | 1" | 3-1/4" | 60° |
| 1-1/2" | 5/8" | 1" | 3-5/16" | 60° |
| 1-1/2" * | 15/32" | 1/2" | 2-3/4" | 55° |
| 13mm | 4mm | 12mm | 63.5mm | 60° |
| 16mm | 5.5mm | 12mm | 66.5mm | 60° |
| 19mm | 7mm | 12mm | 66.5mm | 60° |
| 22mm | 9.5mm | 12mm | 68.5mm | 60° |
| 25mm | 12mm | 12mm | 70.0mm | 60° |
| 28mm | 12.5mm | 16mm | 71.5mm | 60° |
| 32mm | 13.5mm | 16mm | 74.5mm | 60° |
| 35mm | 14.5mm | 25mm | 84.0mm | 60° |
| 38mm | 18mm | 25mm | 85.5mm | 60° |
Inverted Dovetail Angular Cutter Screwed Shank, 45°
| Size | Cutter Width | Shank Dia. | OAL | Angle |
| 1" | 5/16" | 1/2" | 2-3/4" | 45° |
| 1-1/2" | 13/32" | 1" | 3-5/32" | 45° |
| 13* | 3.7 | 12 | 58 | 45° |
| 16 | 4 | 12 | 66.5 | 45° |
| 19 | 5.5 | 12 | 66.5 | 45° |
| 20* | 5 | 12 | 63 | 45° |
| 22 | 7.5 | 12 | 68.5 | 45° |
| 25 | 8.5 | 12 | 70 | 45° |
| 28 | 8.5 | 16 | 71.5 | 45° |
| 32 | 8.5 | 16 | 74.5 | 45° |
Inverted Dovetail Angular Cutter Screwed Shank, 60°
| Size | Cutter Width | Shank Dia. | OAL | Angle |
| 1" | 5/16" | 1/2" | 2-3/4" | 60° |
| 1-1/2" | 5/8" | 1" | 3-3/8" | 60° |
| 13* | 4.3 | 12 | 58 | 60° |
| 16 | 5.5 | 12 | 66.5 | 60° |
| 19 | 7 | 12 | 66.5 | 60° |
| 20* | 8 | 12 | 63 | 60° |
| 22 | 12 | 12 | 68.5 | 60° |
| 25 | 12.5 | 12 | 70 | 60° |
| 28 | 13.5 | 16 | 71.5 | 60° |
| 32 | 13.5 | 16 | 74.5 | 60° |
|
|
