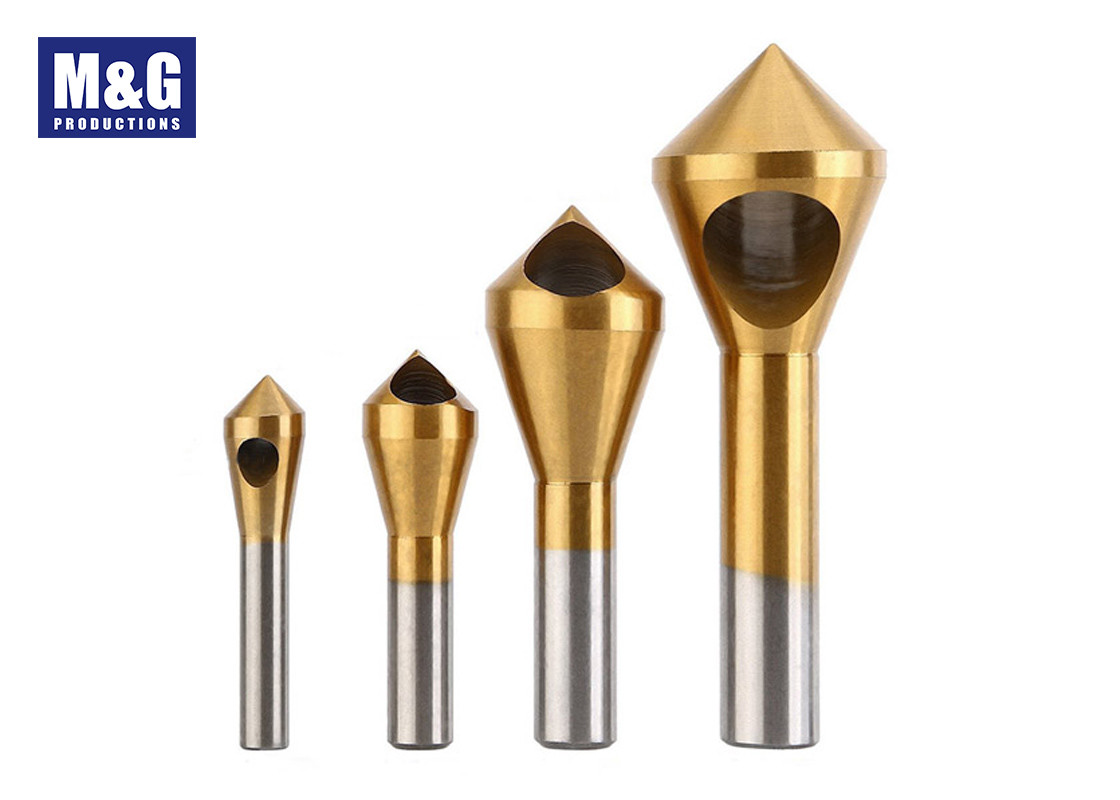

HSS Zero Flute Countersink
The hole style deburring tool is designed to countersink and chamfer light metals and plaastics
The finish is smooth and free of burrs
Lubrication is recommended
60° ,82° and 90°.
| Size | Shank | Overall Length |
| 1~4 | 6.35 | 45 |
| 2~5 | 6 | 45 |
| 5~10 | 8 | 48 |
| 10~15 | 10 | 65 |
| 15~20 | 12 | 85 |
| 20~25 | 15 | 102 |
| 25~30 | 15 | 115 |
| 30~35 | 15 | 127 |
| 35~40 | 15 | 136 |
| 40~45 | 18 | 155 |
| 45~50 | 18 | 166 |
| Size | Shank | Range Of Hole |
| 0 | 1/4" | 1/16~15/64 |
| 1 | 1/4" | 5/32~13/32 |
| 2 | 1/4" | 3/16~17/32 |
| 3 | 1/2" | 5/16~25/32 |
| 4 | 1/2" | 9/16~1/16 |
| 5 | 1/2" | 1/2~1-1/2 |
| 6 | 5/8" | 3/4~1-1/34 |
| 7 | 5/8" | 1"~2" |
| 8 | 3/4" | 1-1/4~2-1/2 |
|
|
