| Brand Name : | M&G |
| Model Number : | 5800 |
| Payment Terms : | T/T, PayPal, Visa |
| Price : | Negotiation |
| Delivery Time : | 7-35 days |
| Supply Ability : | We have enough of machine tools and worker power for any quantity order in industrial tools |

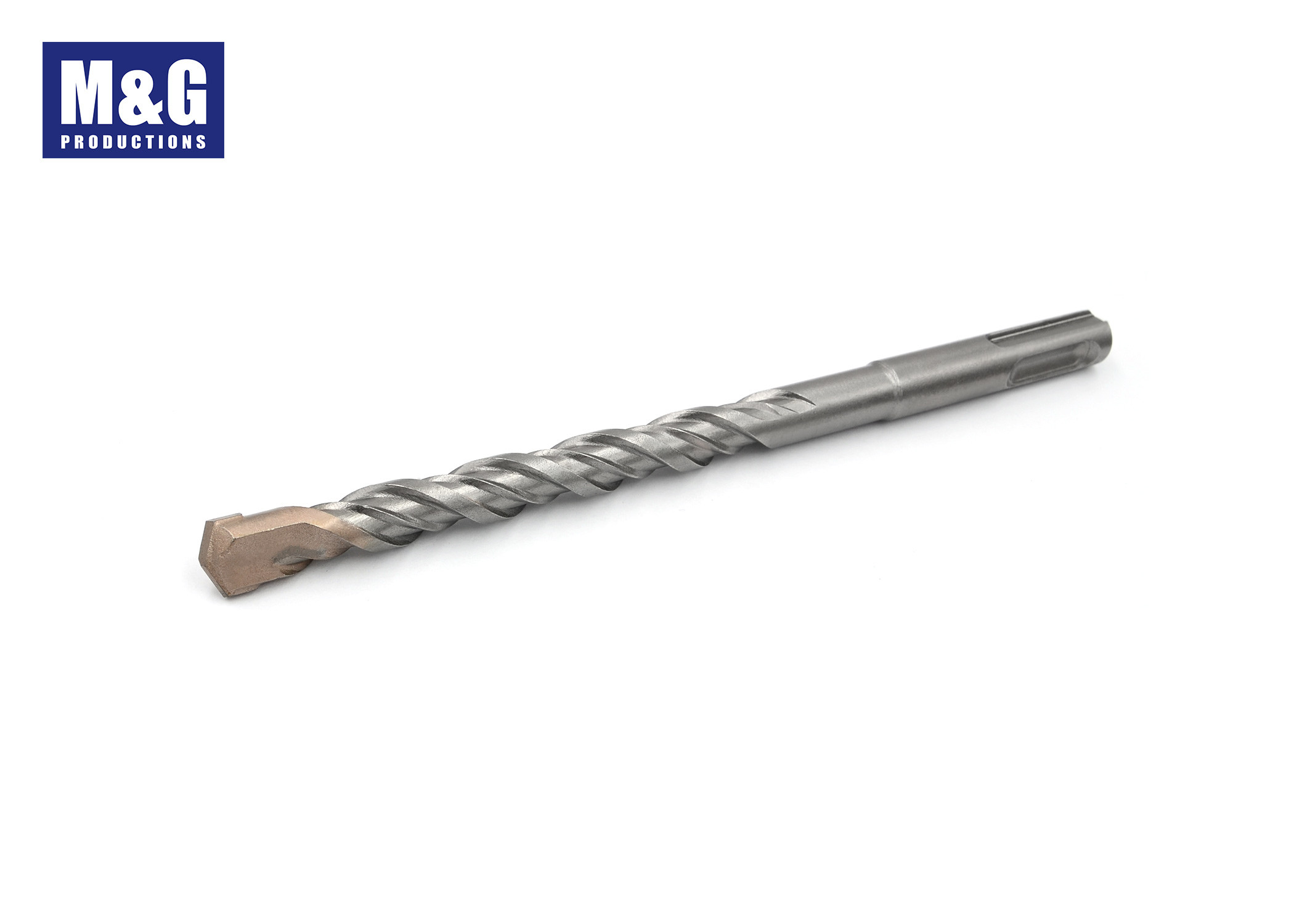

SDS Plus Jobber Drill Bit Hammer Drill Bits With Slot And Cross Head
We supply full range high quality SDS MAX hammer drills, with "slot" and "cross" head.
We use European imported autometic welding machine to fix carbide tips.
We also provide European carbide tips and chinese carbide tip SDS plus drills for all customers needs.
Descriptions:
| Place of Origin: | China |
| Brand Name: | M&G |
| Model Number: | 5800 series |
| Type: | Jobber Drill Bit, Twist Drill Bit |
| Use: | Masonry Drilling, Masonry Drilling |
| Material: | Tungsten Carbide |
| Product Name: | Drill Bit SDS Plus |
| Material Of Shank: | 40Cr Steel |
| OEM: | Acceptable |
| Certificate: | ISO9001 |
| Application: | Concrete,Clinker,Masonry,Stone |
| Packing: | Plastic tube |
| Main Products: | HSS Twist Drill Bits,TCT Hinge Boring Bit,TCT Router Bits Etc. |
Size and range:
Metric size (mm) Dia x length
| 4*110 | 4*160 | 5*210 | 6*260 | 6*310 | 6*350 | 8*400 | 8*460 |
| 5*110 | 5*160 | 6*210 | 7*260 | 7*310 | 8*350 | 10*400 | 10*460 |
| 6*110 | 6*160 | 7*210 | 8*260 | 8*310 | 10*350 | 12*400 | 12*460 |
| 7*110 | 7*160 | 8*210 | 10*260 | 10*310 | 12*350 | 14*400 | 14*460 |
| 8*110 | 8*160 | 9*210 | 12*260 | 12*310 | 14*350 | 16*400 | 16*460 |
| 9*110 | 9*160 | 10*210 | 14*260 | 14*310 | 16*350 | 18*400 | 18*460 |
| 10*110 | 10*160 | 12*210 | 16*260 | 16*310 | 18*350 | 20*400 | 20*460 |
| 12*160 | 14*210 | 18*260 | 18*310 | 20*350 | 22*400 | 22*460 | |
| 14*160 | 16*210 | 20*260 | 20*310 | 22*350 | 25*400 | 25*460 | |
| 16*160 | 18*210 | 22*260 | 22*310 | 25*350 | 28*400 | 28*460 | |
| 20*210 | 25*260 | 25*310 | 28*350 | 30*400 | 30*460 | ||
| 22*210 | 28*260 | 28*310 | 30*350 | 32*400 | 32*460 | ||
| 25*210 | 30*310 | 32*350 | |||||
| 32*310 |
Imperial Size inch
| Dia. | OL | Dia. | OL |
| 5/32" | 4" | 9/32" | 12" |
| 3/16" | 4" | 5/16" | 12" |
| 15/64" | 4" | 3/8" | 12" |
| 1/4" | 4" | 7/16" | 12" |
| 9/32" | 4" | 1/2" | 12" |
| 5/16" | 4" | 9/16" | 12" |
| 3/8" | 4" | 5/8" | 12" |
| 5/32" | 6" | 3/4" | 12" |
| 3/16" | 6" | 13/16" | 12" |
| 15/64" | 6" | 7/8" | 12" |
| 1/4" | 6" | 15/16" | 12" |
| 9/32" | 6" | 1" | 12" |
| 5/16" | 6" | 5/16" | 16" |
| 3/8" | 6" | 3/8" | 16" |
| 7/16" | 6" | 7/16" | 16" |
| 1/2" | 6" | 1/2" | 16" |
| 9/16" | 6" | 9/16" | 16" |
| 5/8" | 6" | 5/8" | 16" |
| 3/16" | 8" | 3/4" | 16" |
| 15/64" | 8" | 13/16" | 16" |
| 1/4" | 8" | 7/8" | 16" |
| 9/32" | 8" | 15/16" | 16" |
| 5/16" | 8" | 1" | 16" |
| 3/8" | 8" | 5/16" | 18" |
| 7/16" | 8" | 3/8" | 18" |
| 1/2" | 8" | 7/16" | 18" |
| 9/16" | 8" | 1/2" | 18" |
| 5/8" | 8" | 9/16" | 18" |
| 3/4" | 8" | 5/8" | 18" |
| 13/16" | 8" | 3/4" | 18" |
| 7/8" | 8" | 13/16" | 18" |
| 15/16" | 8" | 7/8" | 18" |
| 1" | 8" | 15/16" | 18" |
| 15/64" | 12" | 1" | 18" |
| 1/4" | 12" |
