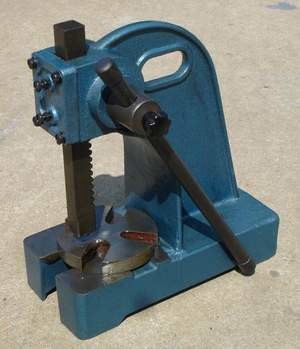

Application:
The machine is suitable for operating in the open air or the other special situation.
| Model | NO.0 | NO.1 | NO.2 | NO.3 | NO.5 |
| Body height(mm) | 263 | 298 | 363 | 565 | 808 |
| Pressure(kn) | 5 | 10 | 20 | 30 | 50 |
| Rack size(mm) | 18*18*180 | 25*25*240 | 30*30*320 | 38*38*440 | 50*50*680 |
| Base size(mm) | 235*104 | 248*114 | 400*168 | 460*200 | 665*242 |
| Table diameter(mm) | φ90 | φ90 | 170 | 170 | 240 |
| Rack stroke(mm) | 114 | 140 | 215 | 310 | 460 |
| Weight(kg) | 8.5 | 11.5 | 28 | 48 | 120 |
| Dimensions(mm) | 235*160*263 | 248*180*298 | 400*245*363 | 460*337*555 | 665*333*808 |
| MODEL NO. | PRESS TONS | HT.OF PRESS | BASE DIAM. | MAX HEIGHT | LARGEST ARBOR | SIZE | LENGTH |
| 0 | 1/2 TON | 10" | 4"x9-1/2" | 4-1/2" | 1-1/8" | 3/4"x3/4" | 7-1/2" |
| 1 | 1 TON | 12" | 5"x11" | 5-1/4" | 1-3/8" | 1"x1" | 9-1/2" |
| 2 | 2 TON | 17" | 6-3/4"x17" | 8-1/2" | 1-3/4" | 1-1/4"x1-1/4" | 14" |
| 3 | 3 TON | 21-1/2" | 8"x18" | 12-1/2" | 2-1/2" | 1-1/2"x1-1/2" | 18" |
|
|
